პროდუქცია » Sysmex CA-620 and 660 Systems

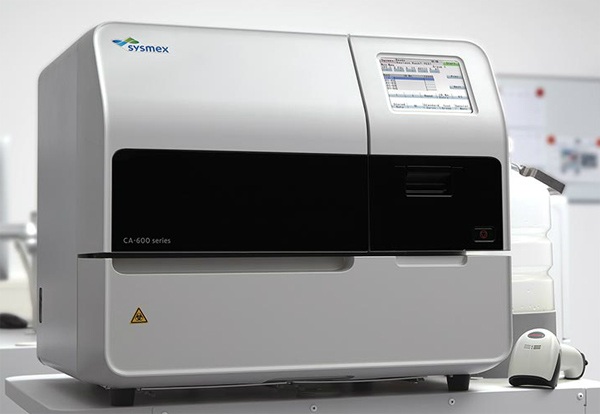

The Sysmex® CA-600 Systems are compact, fully automated systems featuring clotting, chromogenic*, and immunologic* measurements in true random-access. Offering the smallest footprint in its class, the systems are ideal for low-volume laboratories or as a backup instrument for large laboratories.

Proven economy with two model configurations

Sysmex CA-620

Some labs need routine testing. Others need routine and specialty testing. With models custom-tailored to the needs of each, labs get the solution that fits their needs. The Sysmex CA-620 System offers clotting testing methodology for laboratories that primarily perform routine tests; the Sysmex CA-660 System offers clotting, chromogenic*, and immunologic* testing for laboratories that require a broader test menu and perform specialty testing.

Convenient system that saves you time and money

Sysmex CA-620
  • The most economical testing solution is usually the one best tailored to your needs. With the Sysmex CA-620 for routine testing, and the CA-660 adding specialty testing, labs get exactly what they need
  • The systems are so easy to learn and use that costly classroom training is not required, maximizing your personnel time and ensuring efficient workflow
  • The Siemens commitment to standardized reagents, quality control, and consumables reduces waste and saves time through streamlined ordering and maintenance
  • Because there’s nearly a year between service visits, you can be confident in consistent uptime

Reduce hands-on time and increase walkaway ability

Sysmex CA-620
  • Automated probe rinse eliminates manual steps
  • Simultaneous analysis of results frees up time
  • Increase D-Dimer throughput by 40%1
  • Hand-held two-dimensional barcode reader simplifies the data entry process for ISI, control and calibrator values, lot numbers, and expiry information
  • Sample barcode reader provides simplified sample ID processing and enables security and integrity of patient records

Make a big impact with the smallest footprint

Sysmex CA-620
  • 25% less power consumption1
  • Minimal consumables needed—only CA Clean I, CA Clean II, and reaction tubes
  • Only one reaction tube used per test

Consistently monitor your patients, from lab to lab

CA-660
  • Results correlate with the entire line of Siemens hemostasis systems
  • Provides confidence through standardized results

The CA-600 Systems build upon the proven technology and reliability of the Sysmex CA-500 Series Systems, thus offering peace of mind and easy integration into your laboratory.



Technical Specifications



Dimensions
566 x 490 x 490 mm (W x D x H)
22.5 x 19.5 x 19.5 in.
Weight
Approx. 43 kg/94.6 lb
Method/channels
Clotting/4, chromogenic,* and immunologic*
Source Lamp
Clotting 4 LEDs with 660 nm/wavelength
Chromogenic 1 LED with 405 nm/wavelength*
Immunologic 1 LED with 575 nm/wavelength*
Sample capacity
10 sample tubes
Throughput (Approx)
PT 60 tests/hour
D-Dimer 16 tests/hour
PT, APTT, Fibrinoogen 48 simultaneous tests/hour
PT/APTT/Fibrinogen/AT 40 simultaneous tests/hour
PT/APTT/Fib/D-Dimer 32 simultaneous tests/hour
Access mode
Continuous random access (reaction tubes)
Calibration
Automatic predefined calibration
STAT
1 priority position
Reaction Tubes
Single reaction tubes
Reaction Tube Loading
60 reaction tubes onboard
automatic continuous access
